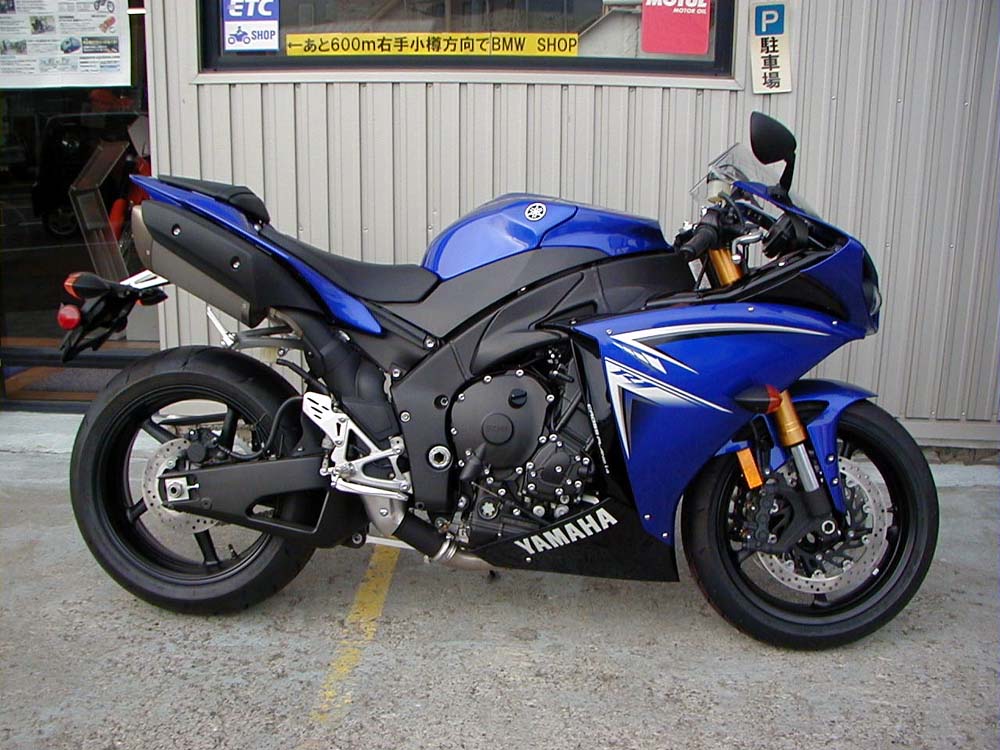

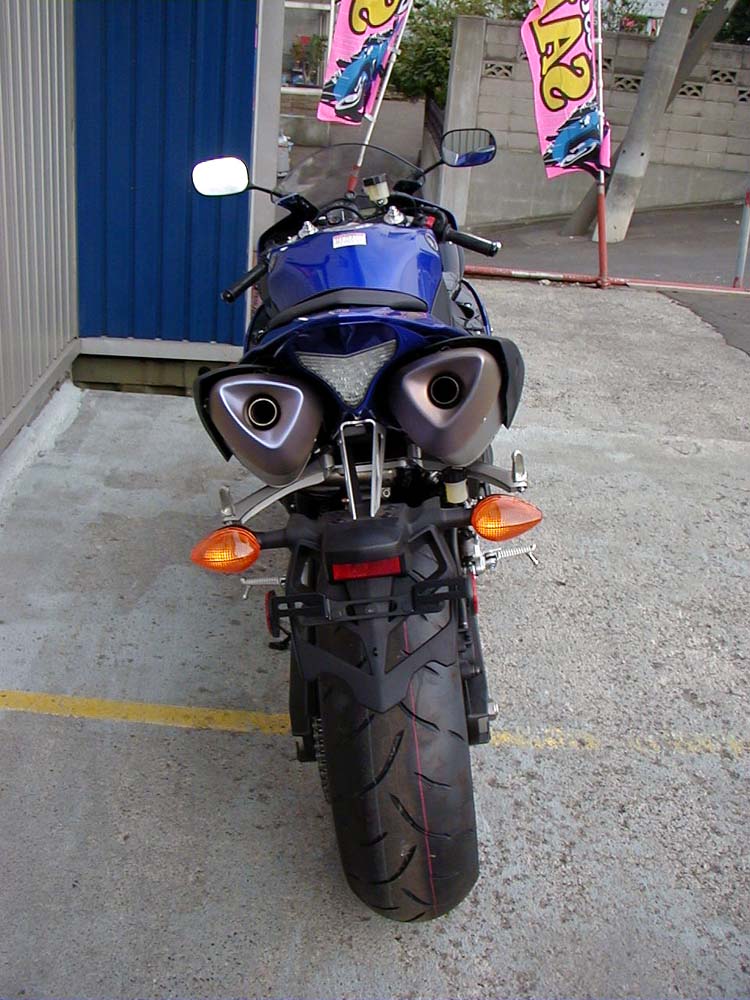

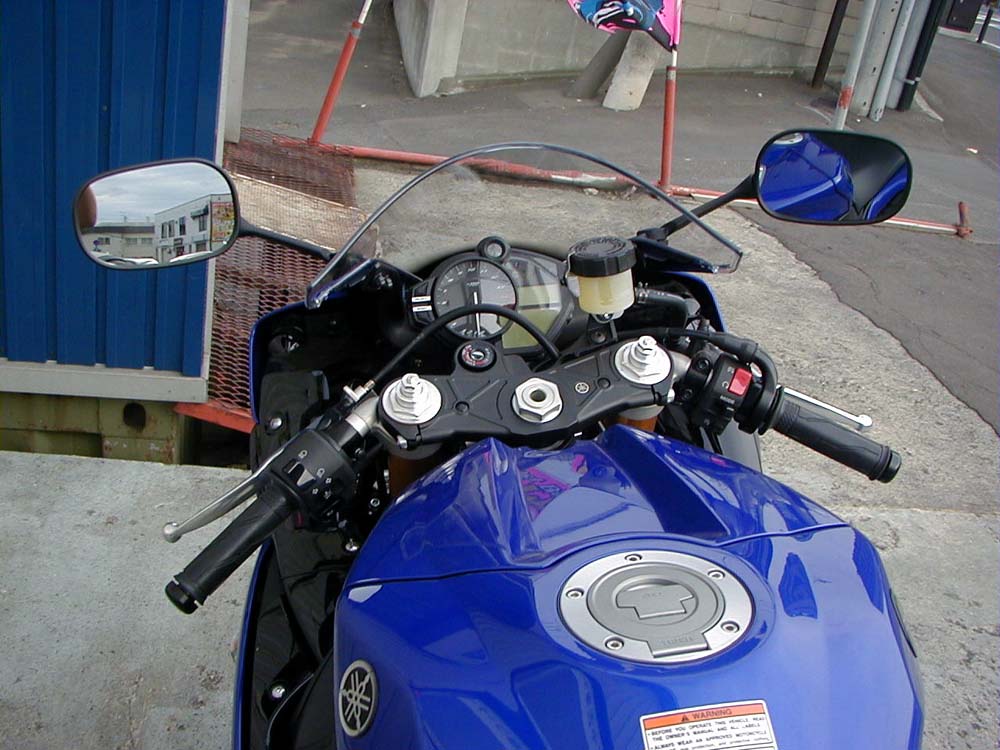

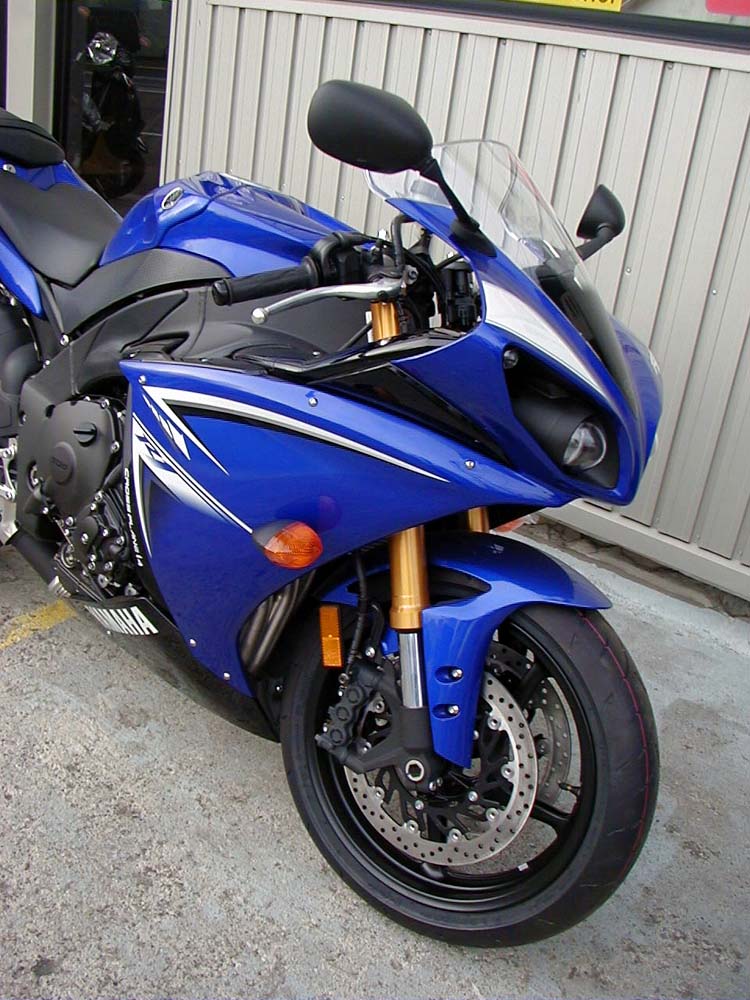

CYCLONE サイクロン - 本店BLOG（旧） : YAMAHA YZF-R1 US仕様　フルパワー展示中！！ by cyclone

本店BLOG（旧） : YAMAHA YZF-R1 US仕様　フルパワー展示中！！ by cyclone

2009年9月6日(日曜日)

カテゴリー:

- cyclone @ 14時29分02秒


Engine
Type	998cc, liquid-cooled 4-stroke DOHC 16 valves (titanium valves)

Bore x Stroke	78.0mm X 52.2mm

Compression Ratio	12.7:1

Fuel Delivery	Fuel Injection with YCC-T and YCC-I

Ignition	TCI: Transistor Controlled Ignition

Transmission	6-speed w/multi-plate slipper clutch

Final Drive	#530 O-ring chain


Chassis
Suspension/Front	43mm inverted fork; fully adjustable, 4.7-in travel

Suspension/Rear	Single shock w/piggyback reservoir; 2-way adjustable, 4.7-in travel

Brakes/Front	Dual 310mm disc; radial-mount forged 6-piston calipers

Brakes/Rear	220mm disc; single-piston caliper

Tires/Front	120/70ZR17M/C 58W

Tires/Rear	190/55ZR17M/C 75W


Dimensions
Length	81.1 in

Width	28.1 in

Height	44.5 in

Seat Height	32.8 in

Wheelbase	55.7 in

Rake (Caster Angle)	24.0°

Trail	4.0 in

Fuel Capacity	4.8 gal

Fuel Economy**	33 mpg

Wet Weight	454 lb


Other
Main Jet	Not Applicable

Main Air Jet	Not Applicable

Jet Needle	Not Applicable

Needle Jet	Not Applicable

Pilot Air Jet 1	Not Applicable

Pilot Outlet	Not Applicable

Pilot Jet	Not Applicable

Primary Reduction Ratio	65/43 (1.512)

Secondary Reduction Ratio	47/17 (2.765)

Gear Ratio - 1st Gear	38/15 (2.533)

Gear Ratio - 2nd Gear	33/16 (2.063)

Gear Ratio - 3rd Gear	37/21 (1.762)

Gear Ratio - 4th Gear	35/23 (1.522)

Gear Ratio - 5th Gear	30/22 (1.364)

Gear Ratio - 6th Gear	33/26 (1.269)

Warranty	1 Year (Limited Factory Warranty)
